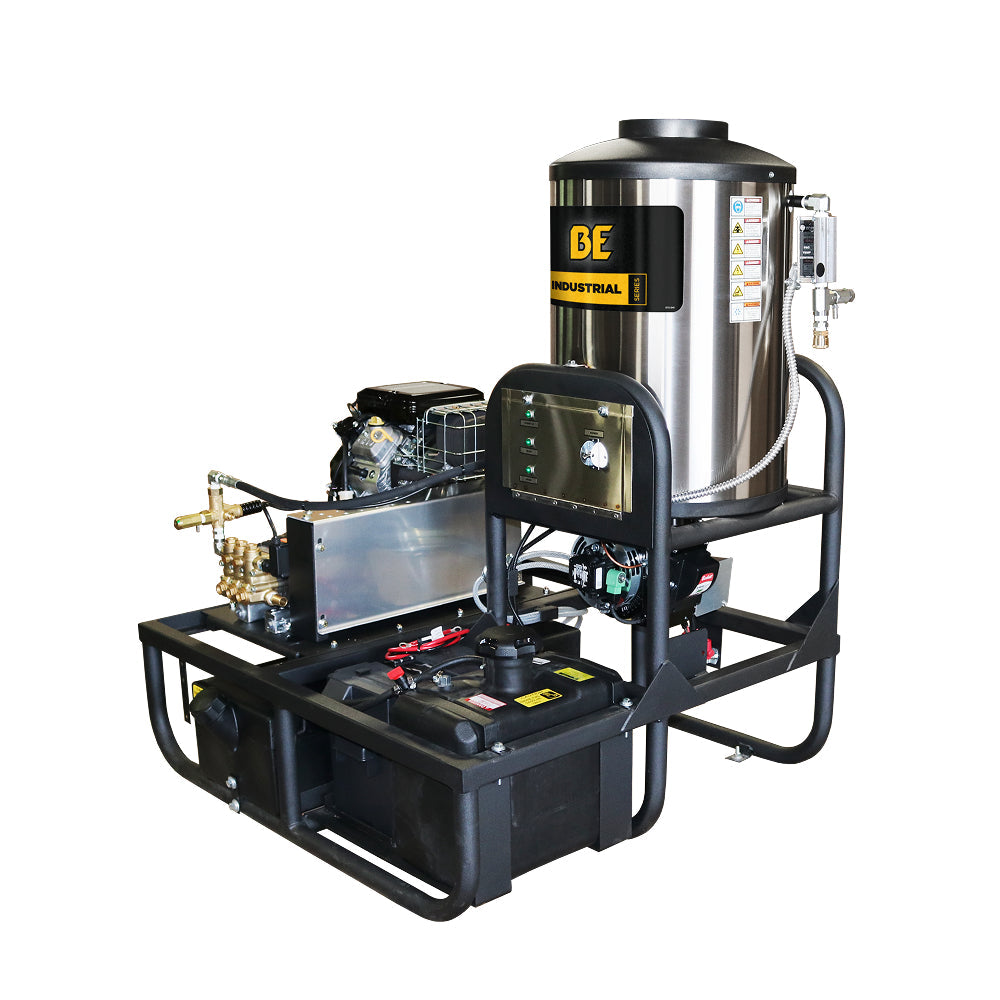

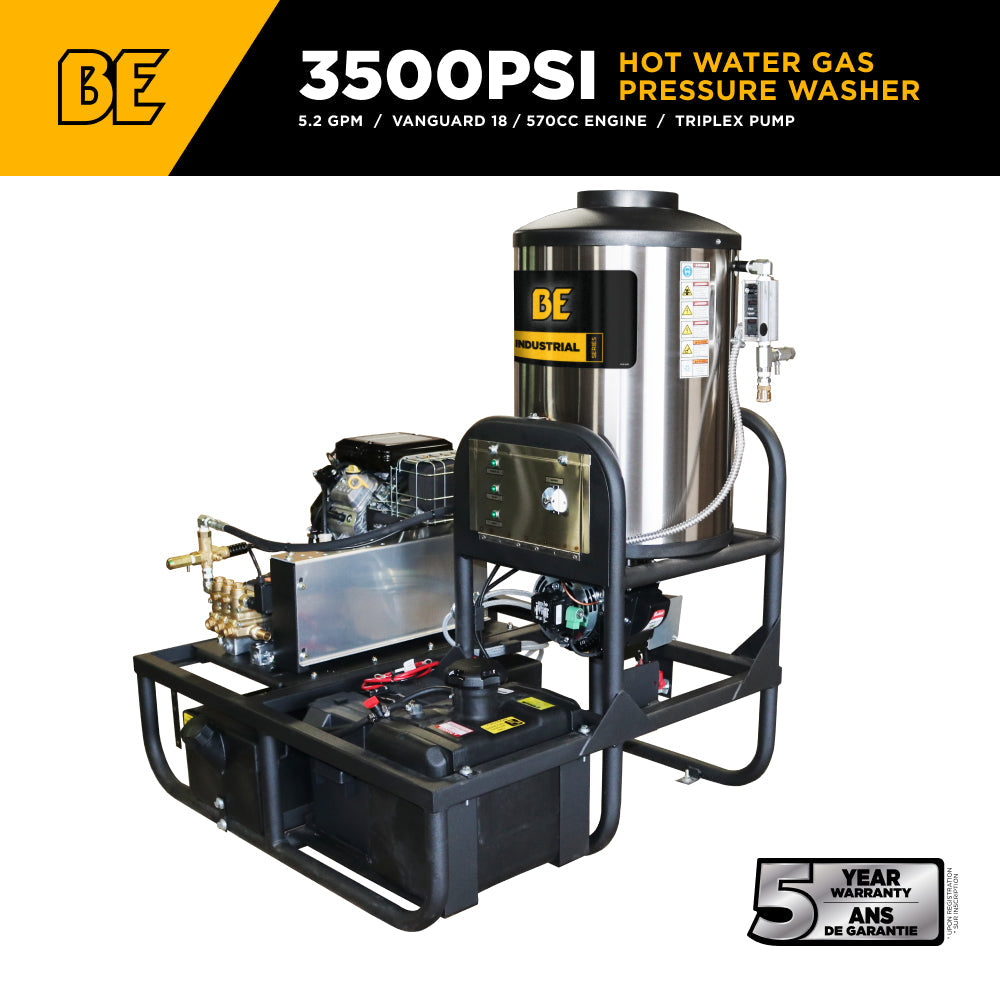

BEPowerEquipment 3,500 PSI 5.2 GPM Hot Water Skid Pressure Washer with General Triplex Pump - Z5535GPBDV

General Overview

Experience unparalleled cleaning power with the Z5535GPBDV Hot Water Pressure Washer, designed specifically for demanding industrial applications. This robust machine is the ideal solution for deep cleaning commercial kitchens, government buildings, and various commercial sites. Equipped with a GENERAL TS2021 Belt-Drive Triplex Pump and a commercial-grade Vanguard 18HP 570cc V-Twin Engine with electric start, it ensures efficient operation and exceptional performance.

The heavy-duty construction features a stainless-steel coil skin water tank and a Schedule 80 heating coil, delivering an impressive 350,000 BTU per hour and a temperature rise of up to 165 degrees. Built for durability and ease of use, this pressure washer boasts an extra heavy-duty steel frame with a powder-coated finish that resists rust and corrosion. The enclosed belt-guard provides added protection, while the stainless-steel control panel features diagnostic LED lights for easy monitoring.

With a professional trigger gun, a 50-foot high-pressure hose, and quick-connect spray tips, you can tackle any cleaning task with confidence. Invest in the BE Industrial Series Hot Water Pressure Washer and elevate your cleaning capabilities to a professional level.

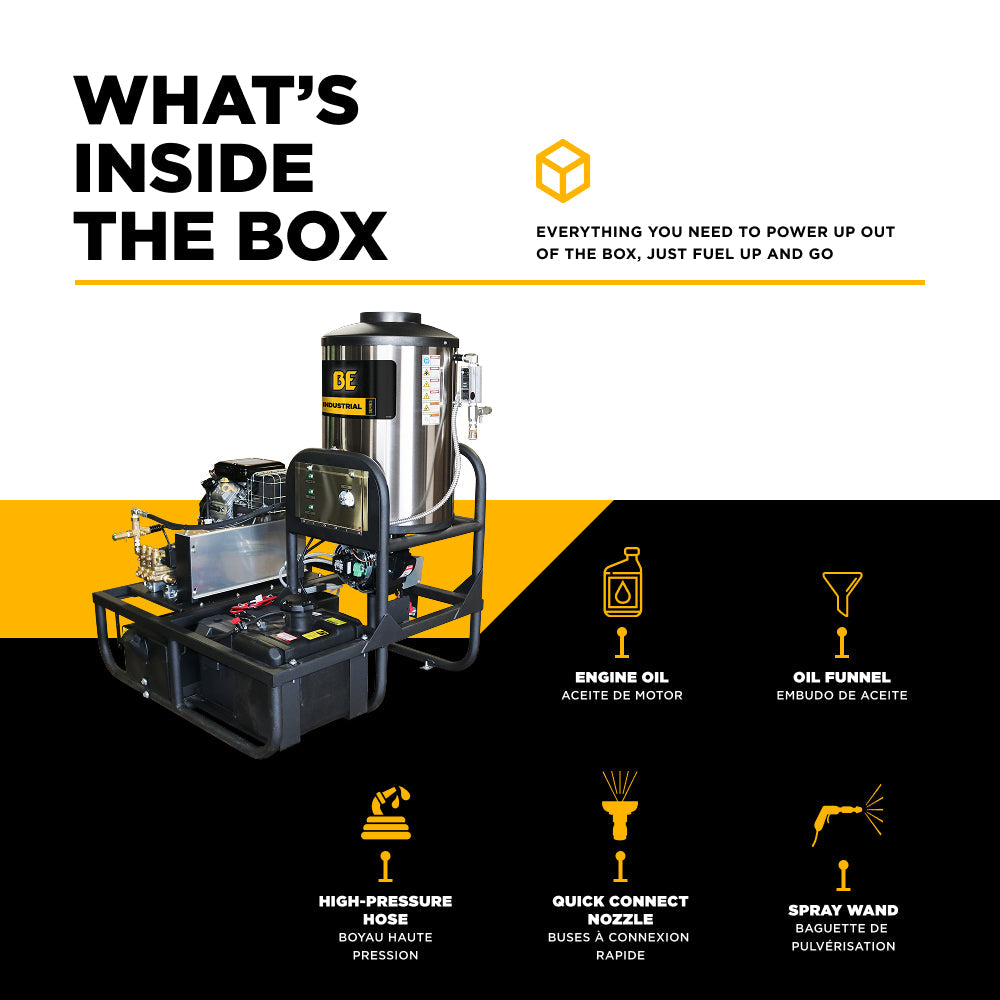

Included in Your Package

• 50 ft. high-pressure hose (twin-wire braided for strength and flexibility)

• Commercial spray gun and 48" wand (insulated for safety and control with quick-connect fittings)

• 2 quick-connect nozzles (15°, 25°)

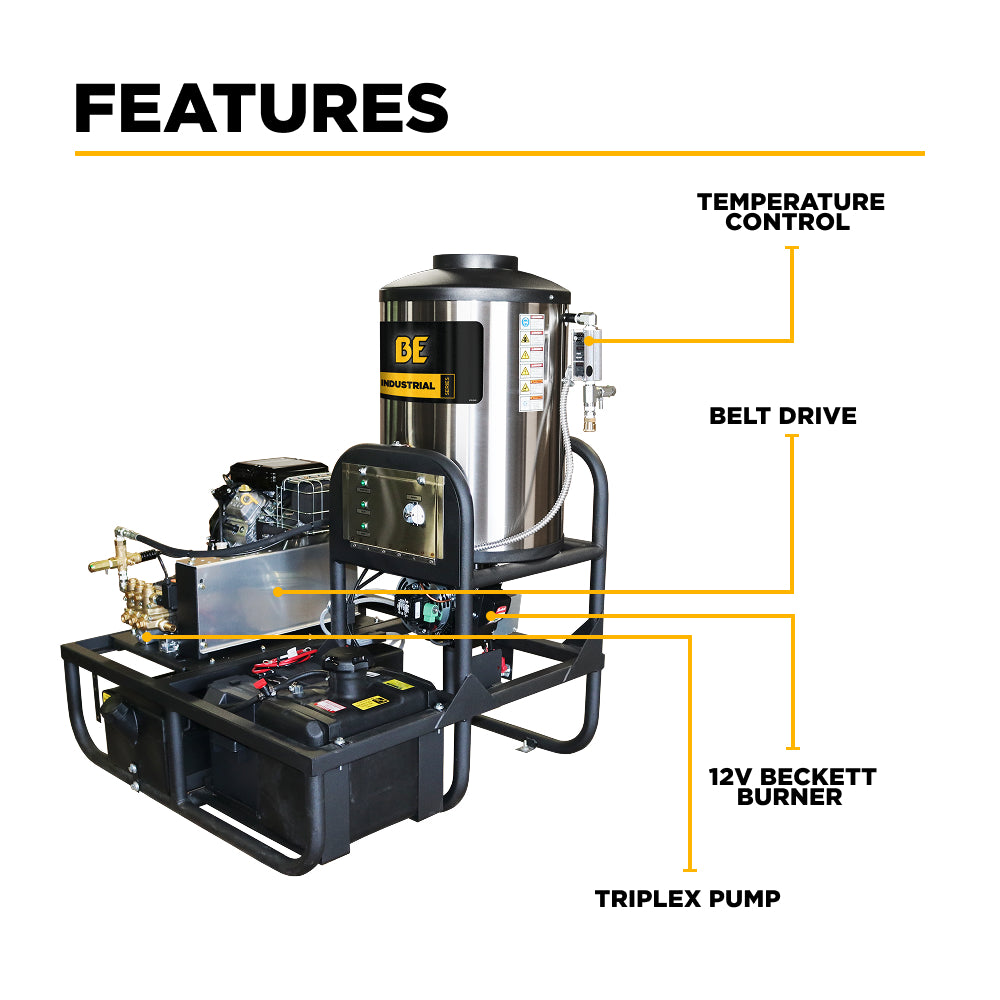

Key Features

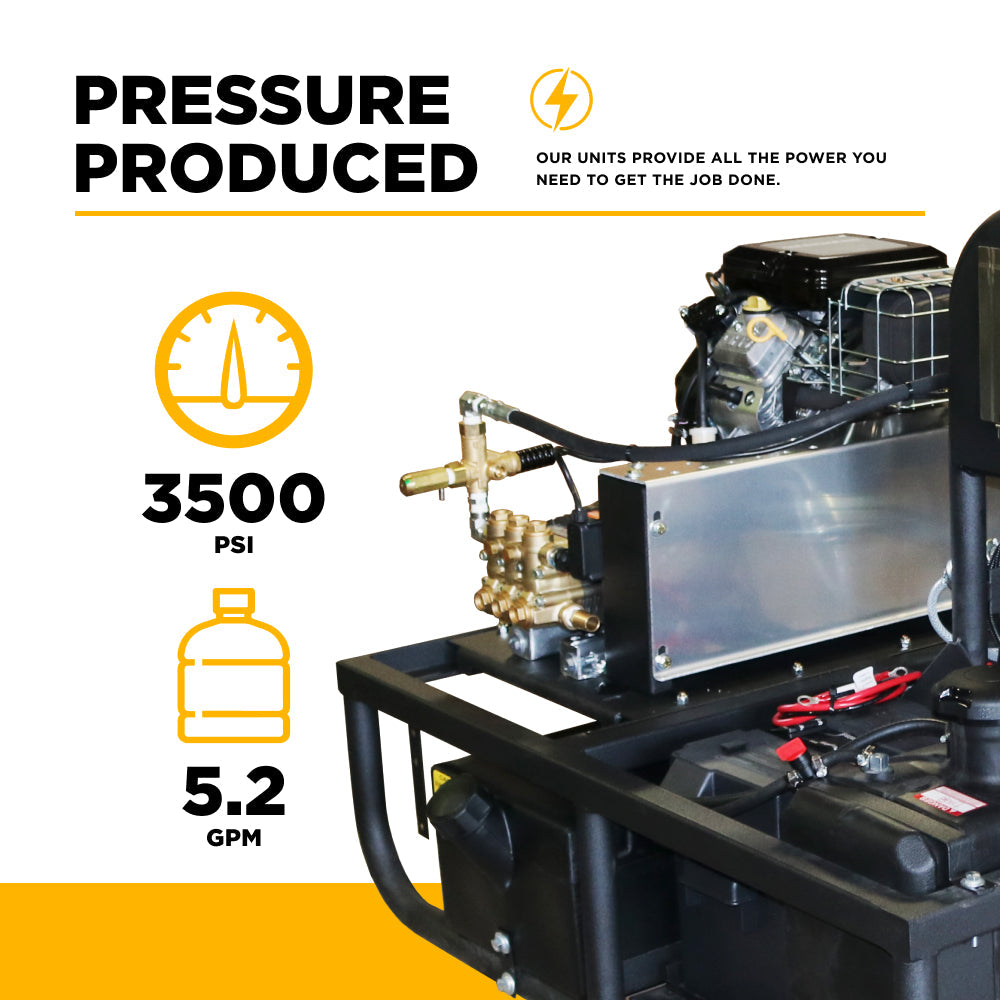

• 3,500 PSI @ 5.2 GPM: Balanced for maximum cleaning in commercial and industrial environments

• Vanguard 18 / 570cc Engine: Delivers robust power for any cleaning job

• Belt Drive System: Reduces vibration and wear for longer pump life and smoother operation

• General Triplex Pump: Features a reinforced body, forged brass manifold, solid ceramic plungers

• External Unloader Valve: Enhances pump cooling, serviceability and long-term durability

• Diesel-Fueled Burner with High Limit Switch: Produces up to 165°F (89°C) of hot water with 350,000 BTU output*

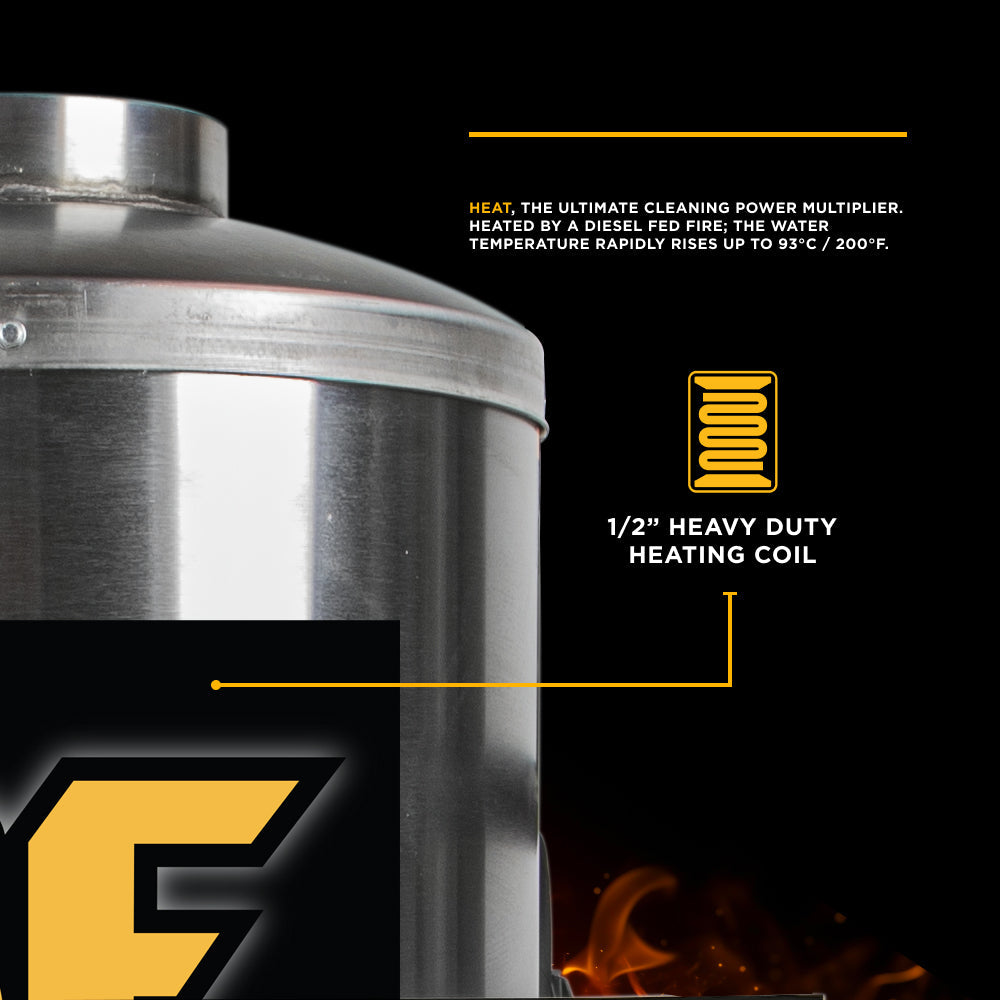

• Schedule 80 Carbon Steel Heating Coil: Wrapped in stainless steel for durability and corrosion resistance

• Powder-Coated Steel Frame: Built tough with heavy-duty frame and comes truck/trailer mount ready

Specifications

• Model: Z5535GPBDV

• Pressure: 3,500 PSI

• Flow Rate: 5.2 GPM

• Engine: Vanguard 18HP / 570cc V-Twin (Electric Start)

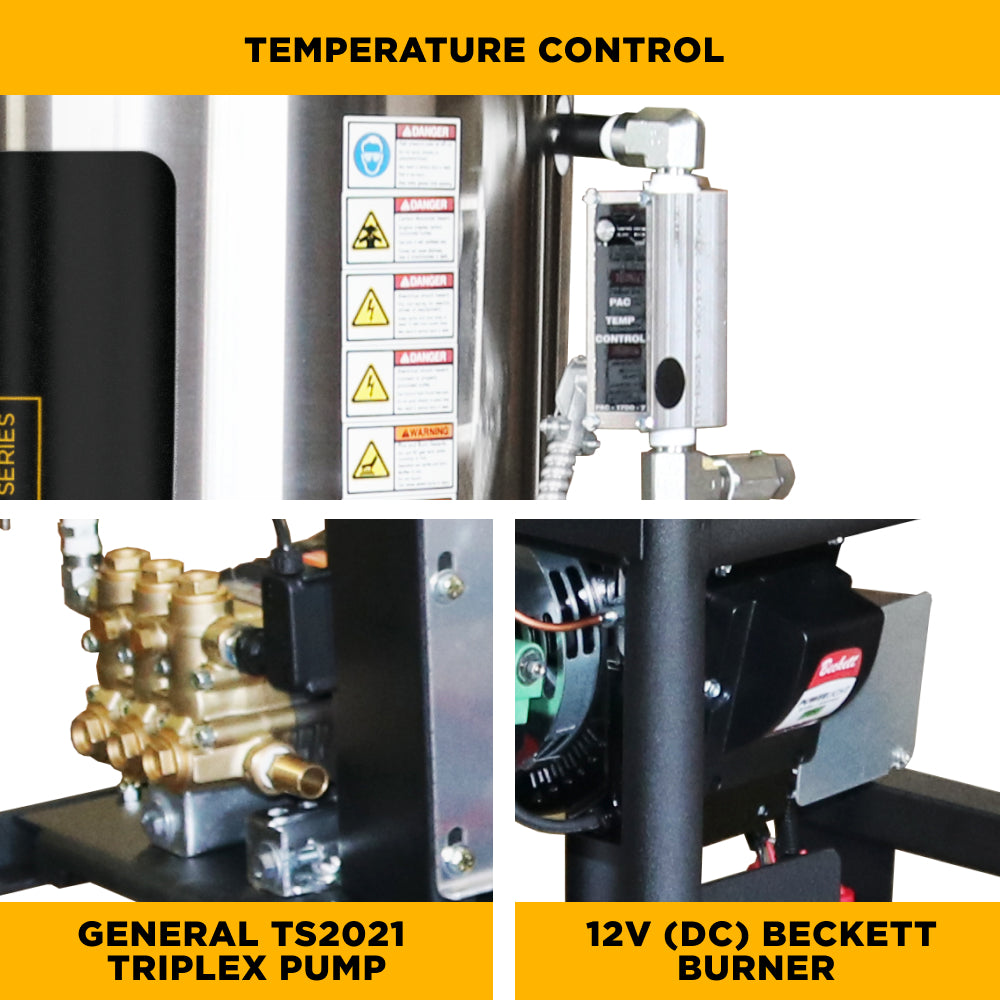

• Pump: General TS2021 Belt-Drive Triplex

• Drive Type: Belt Drive

• Burner Type: Diesel-Fueled with High Limit Switch

• Heating Coil: Schedule 80 Carbon Steel, Stainless Wrap

• BTU Output: 350,000 BTU

• Temperature Rise: Up to 165°F (89°C)

• Frame: Extra Heavy-Duty Powder-Coated Steel with Enclosed Belt Guard

• Hose: 50 ft. Twin-Wire Braided High-Pressure

• Nozzles: 15°, 25° Quick-Connect

• Wand: 48" Insulated with Quick-Connect Fittings

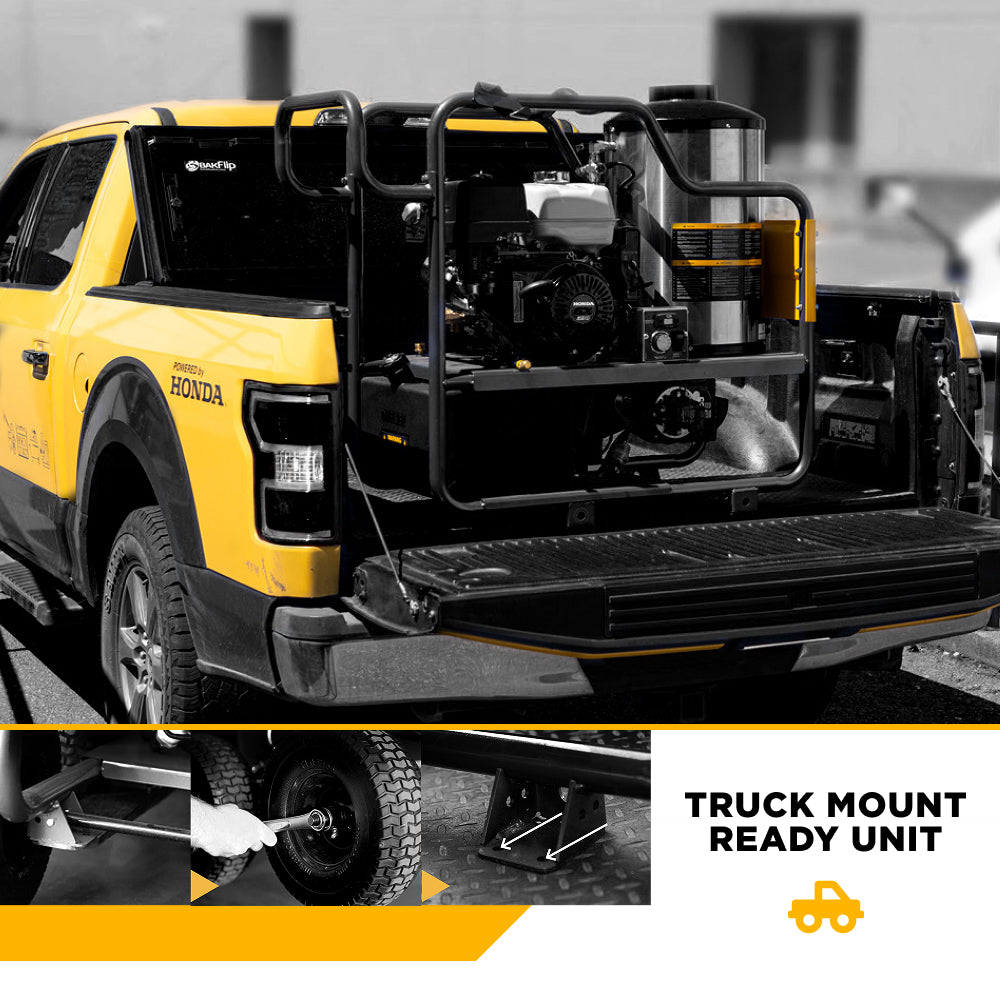

• Mounting: Truck/Trailer Ready
