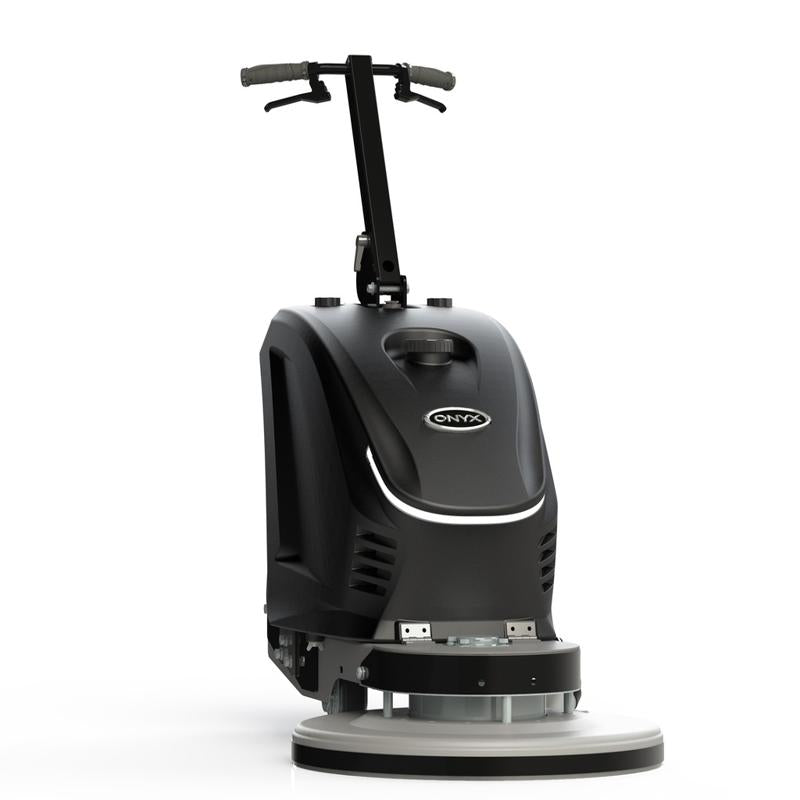

Onyx 24" Lithium-Ion Floor Burnisher – SXi, Single Battery

Meet the ONYX SXi — the world’s first 72V lithium-ion, zero-emission high-speed burnisher built to match propane performance without the fumes, noise, or downtime. Designed for contractors, facility managers, and janitorial teams, the SXi delivers brilliant floor shine with whisper-quiet efficiency and eco-conscious power. Matching the industry leading productivity of our propane machines, this zero-emission machine is a game changer for cleaning and floor prep. contractors.

SXi can be factory configured as a burnisher, or as a floor stripper, or as a concrete polishing and honing machine.


Included in Your Package:

  • Onyx 24" Lithium-Ion Powered Floor Burnisher

  • Single 60 AH Lithium Iron Phosphate Battery

  • Floating Dust Containment Shroud

  • Integrated Micro-Filter Vacuum Bag

  • Onboard Smart Battery Charger


Key Features

  • Lithium-Ion Battery Powered – Long runtime, fast recharge, no cords, no fuel.
  • Zero Emissions & Ultra-Quiet – Safe for schools, hospitals, retail, and high-traffic indoor spaces.
  • Propane-Grade Performance – All the gloss, none of the fumes.
  • Fewer Passes, Higher Gloss – Engineered for maximum shine with reduced labor and pad use.
  • Three Head Size Options – Easy head size change from 21", 24" or 27". Can we ordered in any of these three head sizes.
  • Configuration Versatility – Variable speed range (600 - 1,800 RPM), onboard 10-gallon water tank for stripping/polishing use, wide range of pad/brush down-force adjustments.
  • Advanced Dust Control – Cleaner air, healthier workspace, and superior finish quality.

Specifications

  • Working Width: 24"

  • Motor Power: 5 HP (3.75 kW)

  • System Voltage: 72 V

  • Battery Capacity: 60 AH / 4.32 kWh

  • Battery Life: 2,500 cycles

  • Runtime: Up to 2 hours per charge

  • Charge Time: 4.8 hours

  • Coverage Rate: Up to 34,000 sq. ft. per hour

  • Pad Speed: 1,050–1,800 RPM (variable)

  • Sound Level: <63 dBA

  • Pad Pressure: 20–120 lbs (variable)

  • Dimensions: 29"W × 64"L × 42"H

  • Weight: 245 lbs (with battery)

  • Water/Solution Tank: 10 gallons (disconnected in burnisher mode)


Product Documents



SXi Data Sheet

Product specification and additional features.

Operator Manual

Full operation, maintenance, and safety guide.

Illustrated Parts List

Complete parts list and ordering information.

Wiring Diagram

Complete electrical wiring diagram for troubleshooting.
